Set UCS by Plane

By Plane allows the creation of a UCS by assigning a plane to either the X or Y axis without assigning a coordinate like By Pick in the workflow above.

To set a UCS by plane, the user should follow the steps below:

  • Name the UCS.

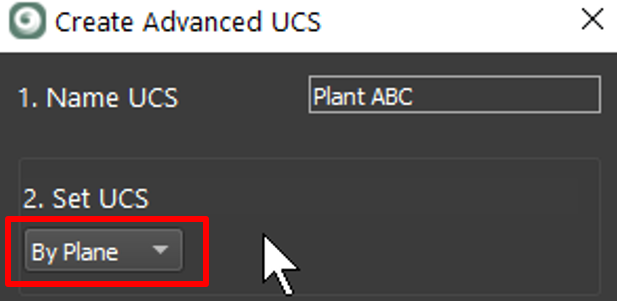

  • Select By Plane as the UCS creation method.

  • Optionally, fence area to constrain plane creation.

  • Use the fence tool to highlight an area for plane creation.

  • Select X or Y direction to be assigned to the plane.

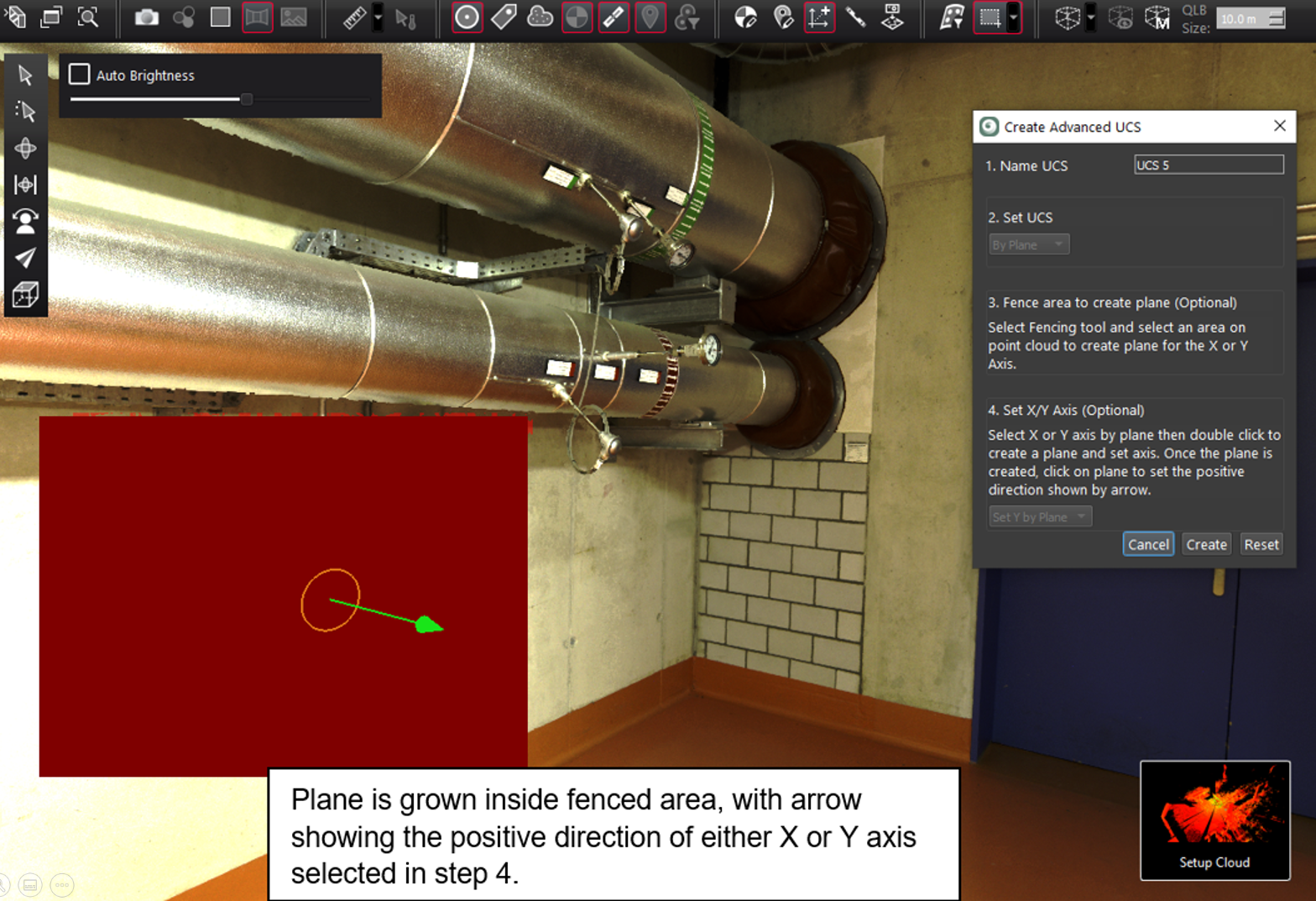

    • Double-click the surface to region grow a plane.

  • –°lick the plane again to set the positive X or Y direction as shown by an arrow.

  • Click Create to finish and create a UCS.
