Panoramic Images

Users can export the panoramic images that are produced either in the field during data capture or those created during the data import process as WayPoints within BLK Mobile data.

Note: Exporting panoramic images requires a Cyclone REGISTER 360 PLUS or a Cyclone WORKFLOW license.

You can access this feature by right-clicking on SiteMap tree items, Bundle tree items, Setup tree items, or WayPoint items in the Review & Optimize section.

To export a panoramic image:

  1. Right-click on the desired item in the Review & Optimize section.

  2. Select the Export option.

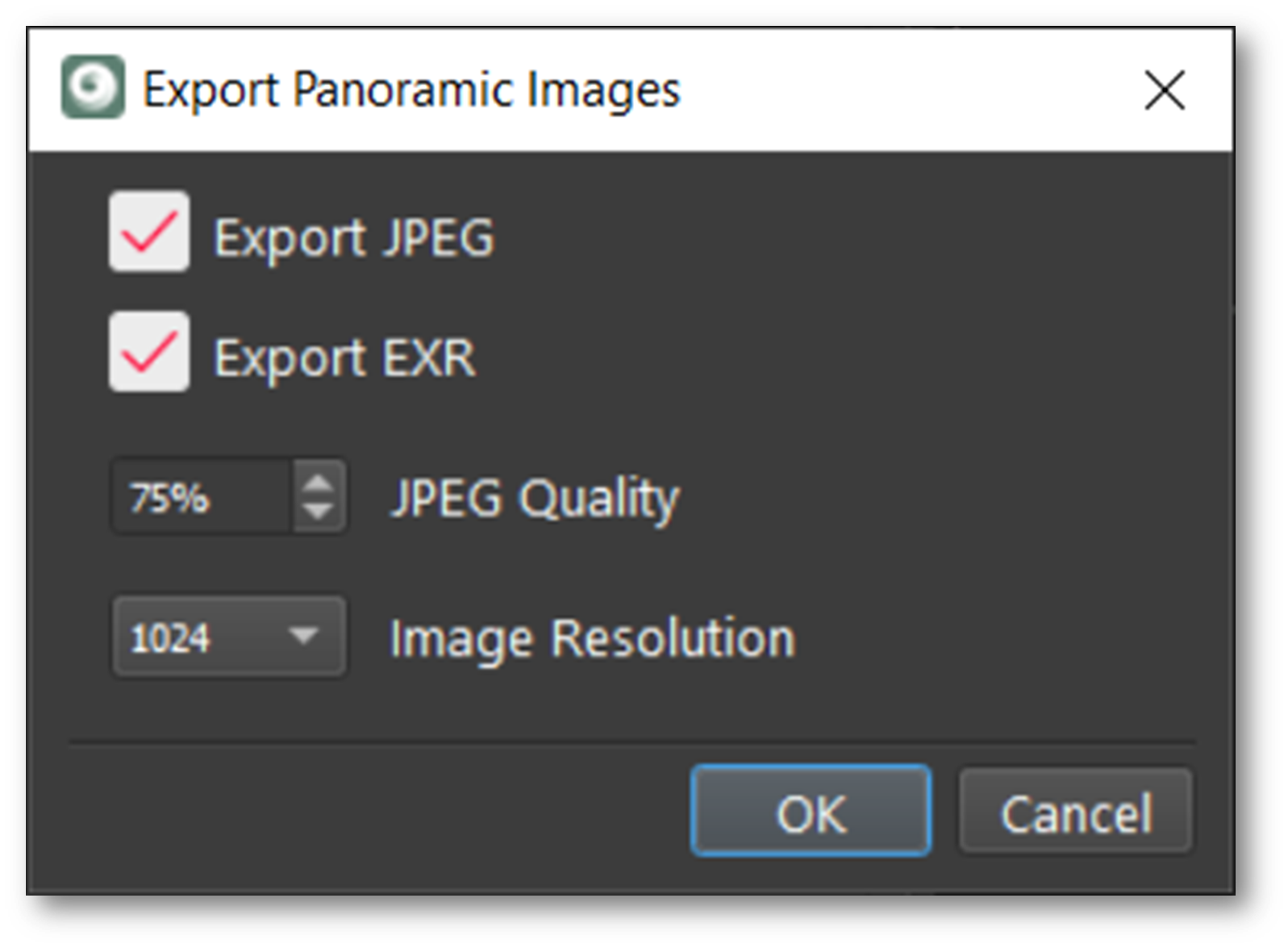

  3. A dialog will prompt you to choose the folder location for export.

  4. Choose your preferred image format (JPEG, EXR, or both) for export.

Note: The tool will only export the maximum image size available for the selected resolution, regardless of the image resolution selected. For example, if the imported resolution is 1K, then only a 1K image will be exported, irrespective of the selected export resolution.
