Import B2G and Export to E57

Importing BLK2GO PULSE data into the Import area and then directly exporting to E57.

Using this approach, the data will NOT be imported into Cyclone REGISTER 360 PLUS.

This is a direct export to E57 with a colorized point cloud without WayPoints.

  1. Import a B2G file or connect to a BLK2GO PULSE scanner.

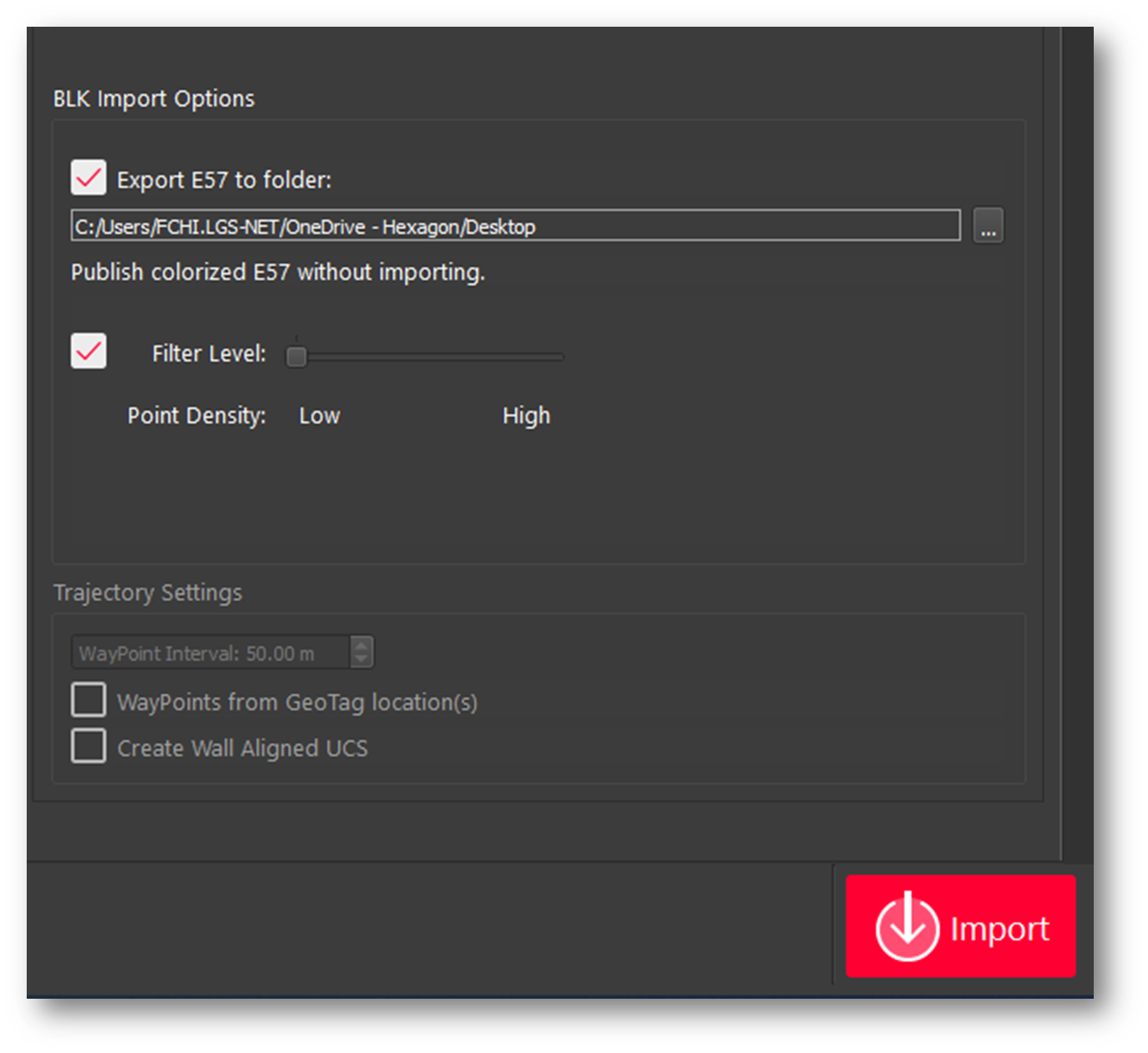

  2. If BLK2GO data is detected in the import area an option to export directly to E57 appears in the right-side panel of the import area. Check the Export E57 to Folder check box and then click the import button.

  3. An E57 file of the BLK2GO data will be written to the selected folder.

Note: This process saves time versus importing the data into Cyclone REGISTER 360 PLUS if the only requirement is a colorized e57 without panoramic images.

Note: Due to the unstructured nature of BLK2GO PULSE data, e57 files created from the scanner will not be supported for import into Cyclone REGISTER 360 PLUS 2021.0 or earlier.

Note: Users should save original .b2g files for future use.
