(2023.0.2) Direct Publish to Cyclone ENTERPRISE
Leica Cyclone ENTERPRISE is a user-managed, on-premise project and data management solution for the reality capture market. Delivering a simplified enterprise-level management and collaboration platform, powered by Leica Geosystems’ JetStream technology, Cyclone ENTERPRISE facilitates:
It is possible to directly publish to Cyclone ENTERPRISE using the following versions of Cyclone REGISTER 360 PLUS.
Cyclone REGISTER 360 PLUS version 2021.0.0 or newer.
Cyclone REGISTER 360 PLUS (BLK Edition) version 2021.0.0 or newer.
Workflow
Choose a Finalized Registration in the Report section.

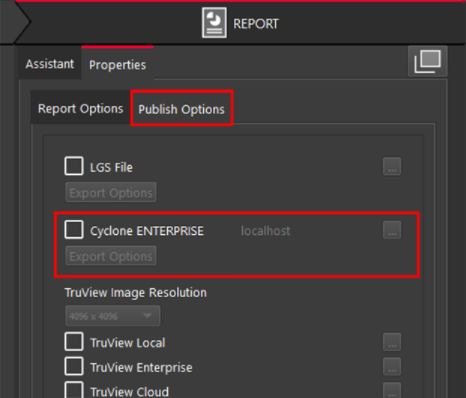

Click on "Publish Options" tab and select Cyclone ENTERPRISE.
Upon selection, if the Cyclone ENTERPRISE server is not set yet, the “Connection Settings” dialog will pop up.
Enter the Cyclone ENTERPRISE Server address port.
For example: "localhost" and "5050" for the local Cyclone ENTERPRISE instance.
Click “Check Server”. If the provided address and port is correct and the server is functioning properly it will display "Connected".
Click OK to continue.

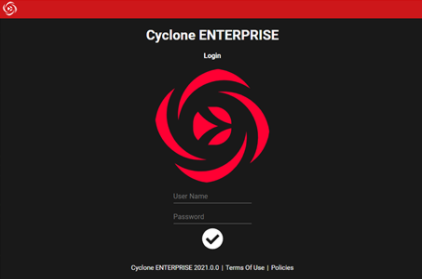

Login with a user that has publishing permission.
Choose the Group and Storage location for publishing.
Note: You may need to login to the Cyclone ENTERPRISE from the Internet browser and set the storage location if no Storage location is set.

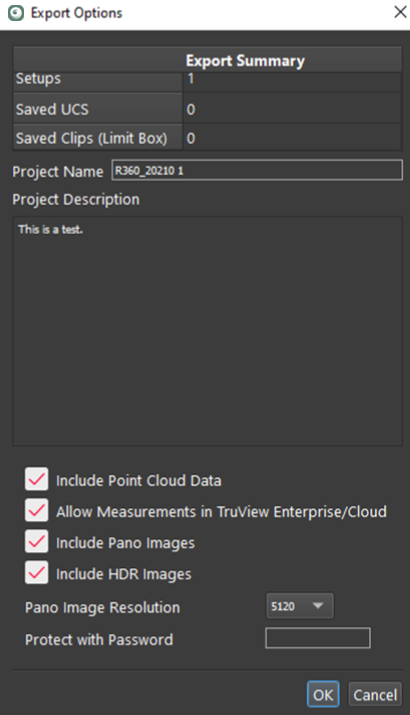

Choose Export Options.
Select OK to Publish.
Note: See Cyclone ENTERPRISE help doc for more details.
