2023 Set UCS by Pick

By Pick will allow the location of a pick point on the point cloud to adopt the coordinate set by the user, then optionally, the user can create a plane to set the X or Y-axis.

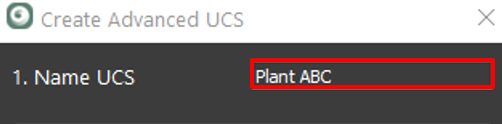

• Name the UCS.

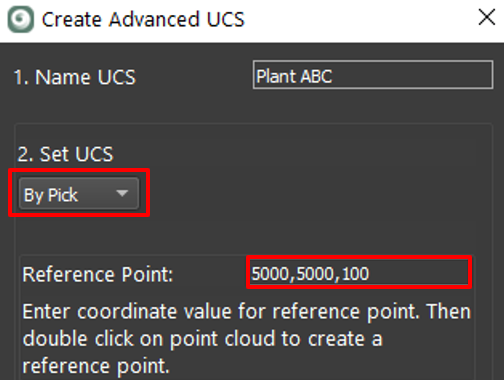

• Select UCS creation method By Pick.

  • Enter coordinates of point identified in the next step.

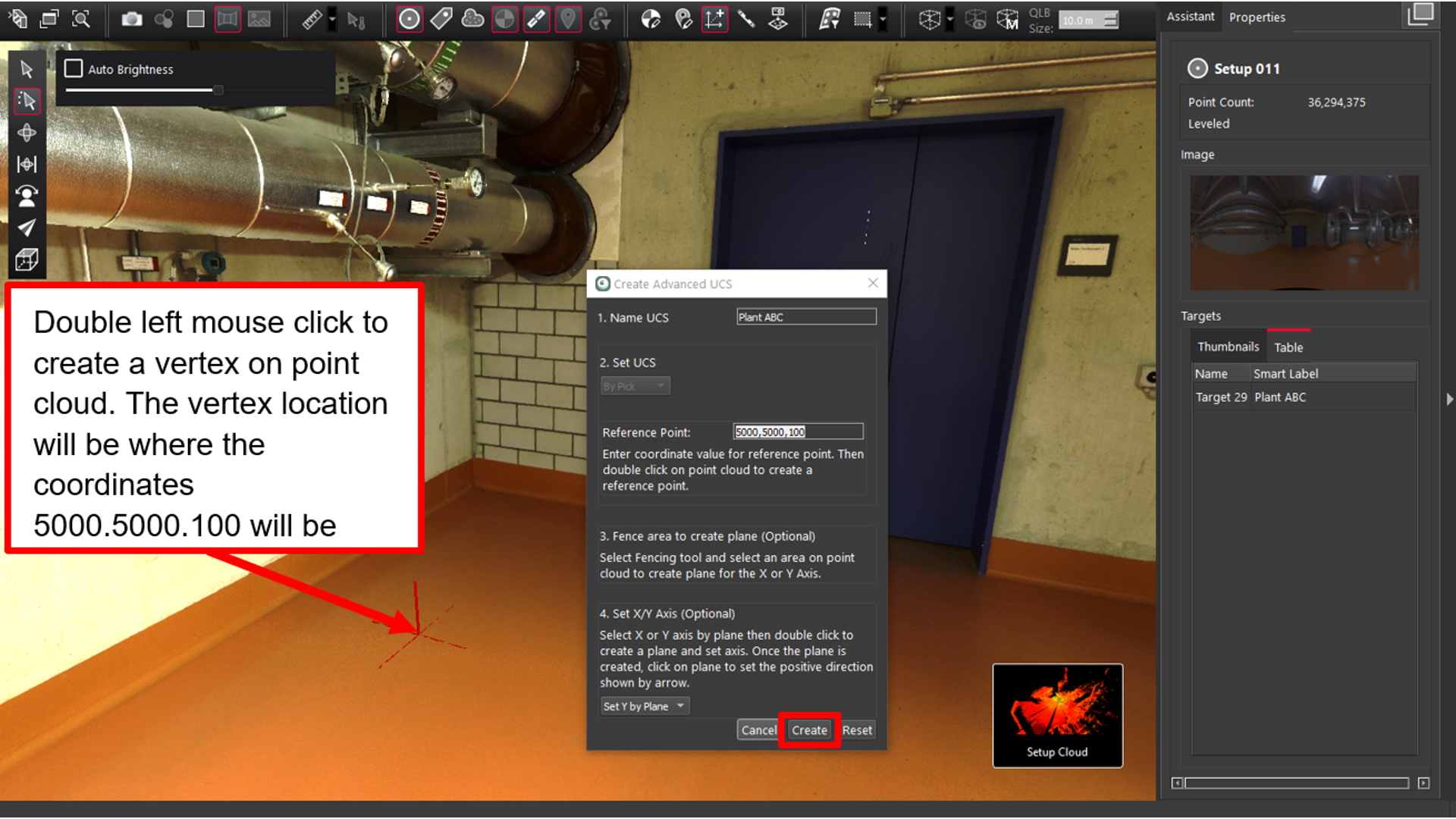

• Then, in the main viewer, double-click the desired point in the cloud to set a vertex.

• This vertex will have coordinates entered.

•  At this point the Create button can be clicked and the point cloud’s coordinate system will be set from the vertex (5000,5000,100):

• Optionally, a plane can be created to represent either the X or Y axis.

•  A plane can be created from the whole wall or just a part of the wall

Note: Limiting the area is useful for plane creation to valid data only.

• To limit the area of the plane, draw a fence around an area on the wall to highlight the area:

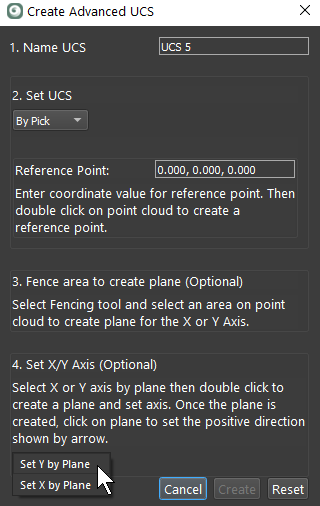

• Optionally, select Set X/Y Axis by plane.

• Double click a wall to create plane and the planer region grower will create a plane.

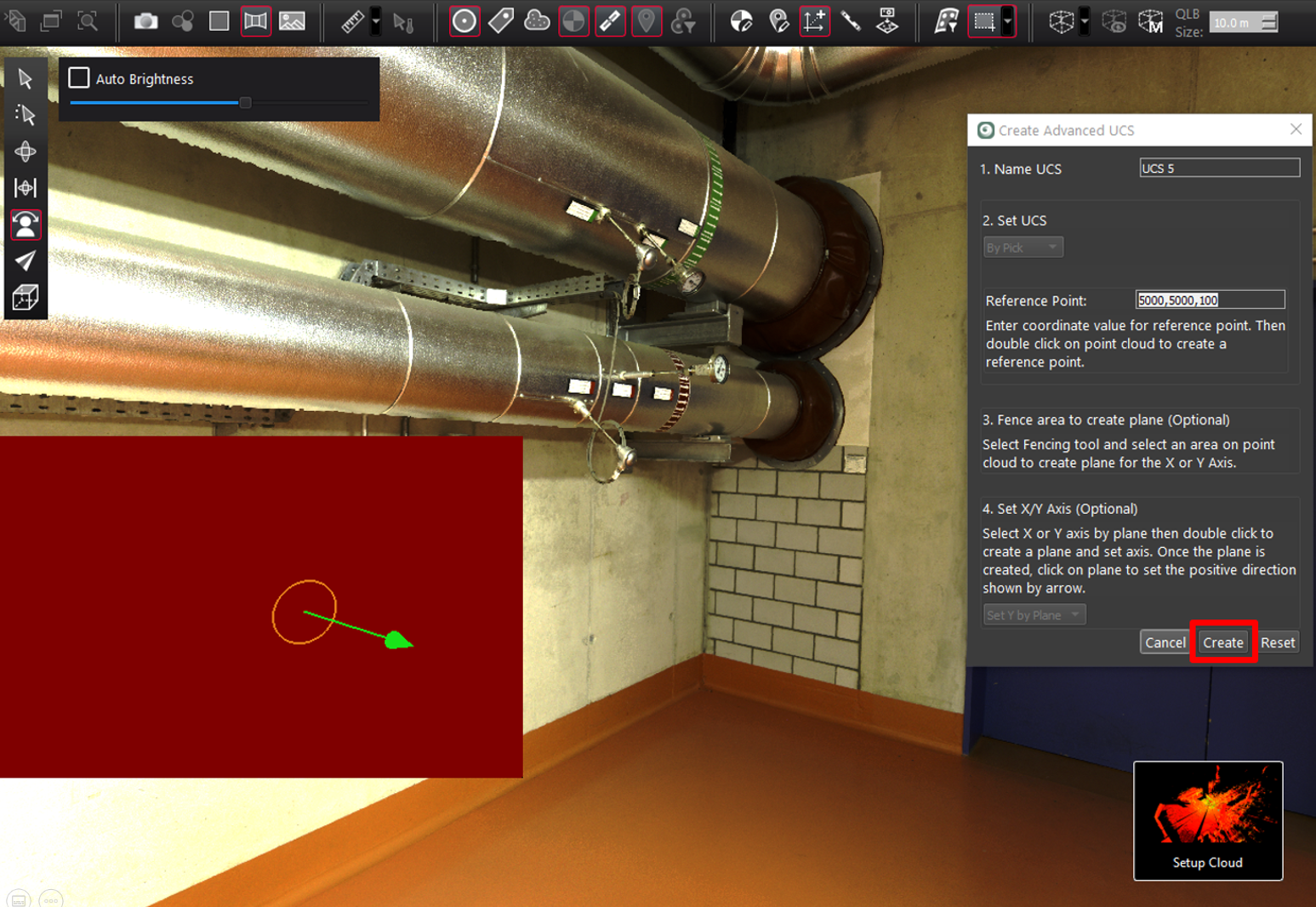

• Single click the plane to set the positive direction as shown by an arrow in the image above.

• Once completed click Create to create the UCS.
