2022.1.1 | Import point cloud as .txt

Point clouds as text can also be imported in a wide variety of formats.

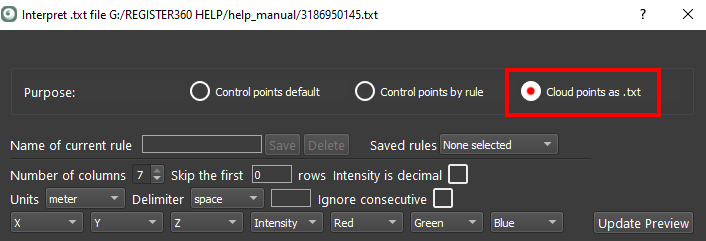

Select Cloud points as .txt

Select the Cloud points as .txt option

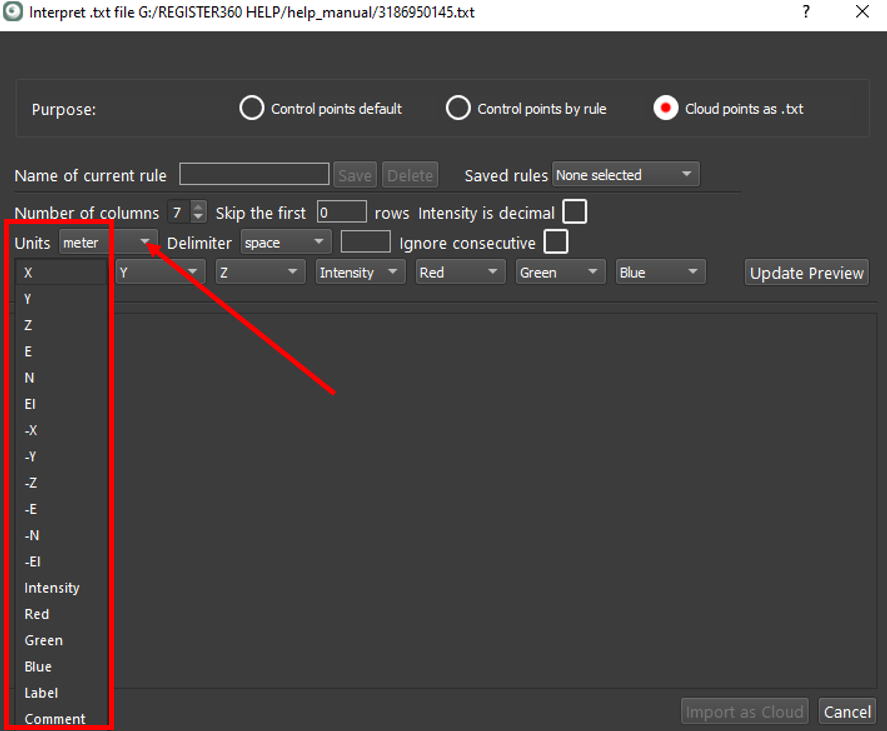

Select the correct designation for each column:

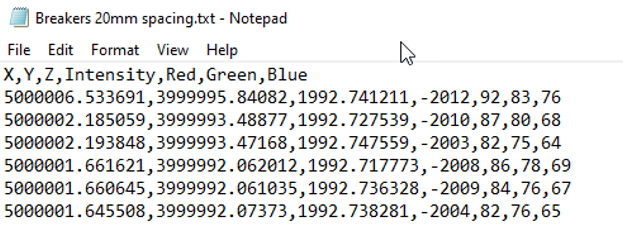

In the case it is x,y,z,intensity,r,g,b:

Select the Units, Delimiter and other optional settings.

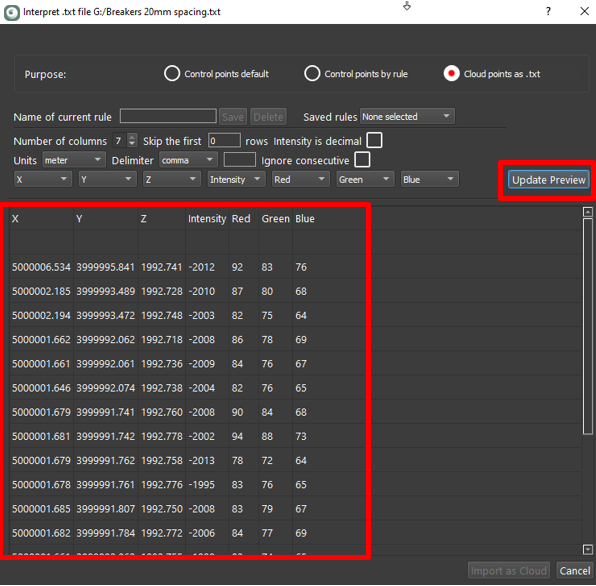

Click the Update Preview button to verify the selected results before import:

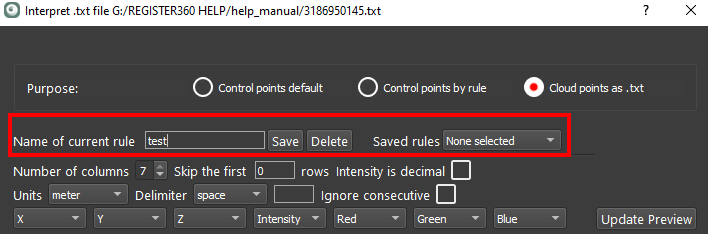

Once verified, name and then save a rule:

The Import as Cloud button will enable. Click the Import as Cloud button to finish the process.

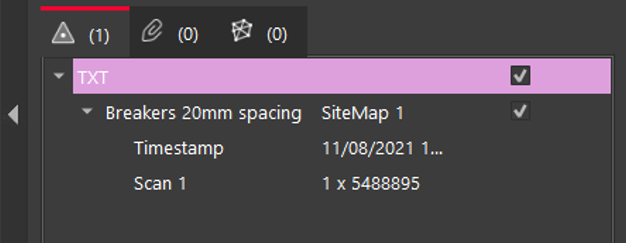

The TXT file will be added to the Import area as a point source in the left side panel:
