This tool aligns a steel element on the extremities of 2 other steel elements.
-
Select the 2 steel elements as reference points.
-
Select the steel element that have to be aligned.
Steel element will be aligned and stretched to the nearest extremities of the ‘reference’ steel elements.
-
Valid the preview with ENTER.

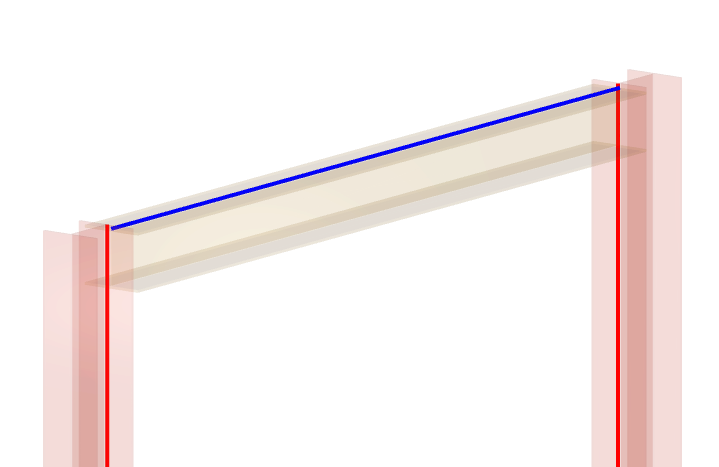

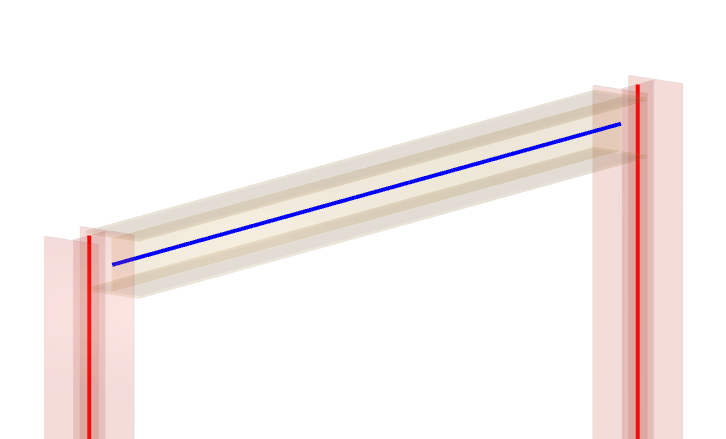

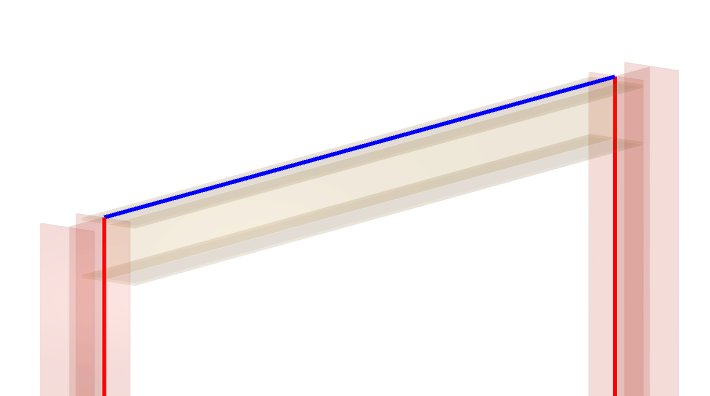

The alignment process is made according to the axes of the steel element: they must be set up appropriately.
