Guided Workflow | Open Hexagon GeoCloud Project File

This CloudWorx Tutorial is intended for first-time users who have access to Hexagon GeoCloud. Please follow the simple steps below to open a project file from GeoCloud in CloudWorx.

GeoCloud account is required to use this new feature.

Accessing GeoCloud Project Files

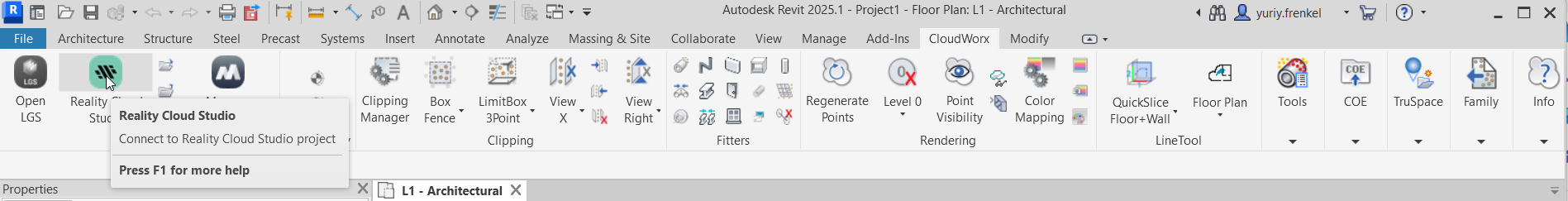

1. Connect to GeoCloud. Click on the GeoCloud icon () as depicted below:

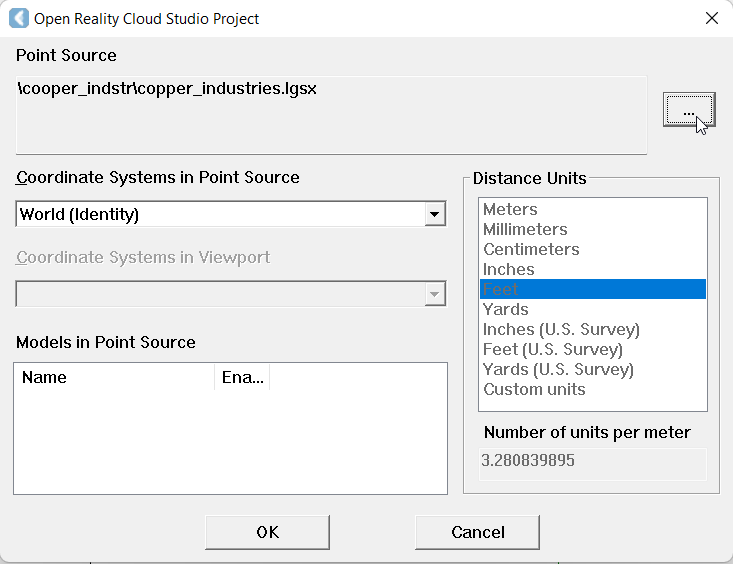

2. Select the appropriate GeoCloud asset.

   Click on the … to navigate to the asset or select one of the recent Point Source project files.

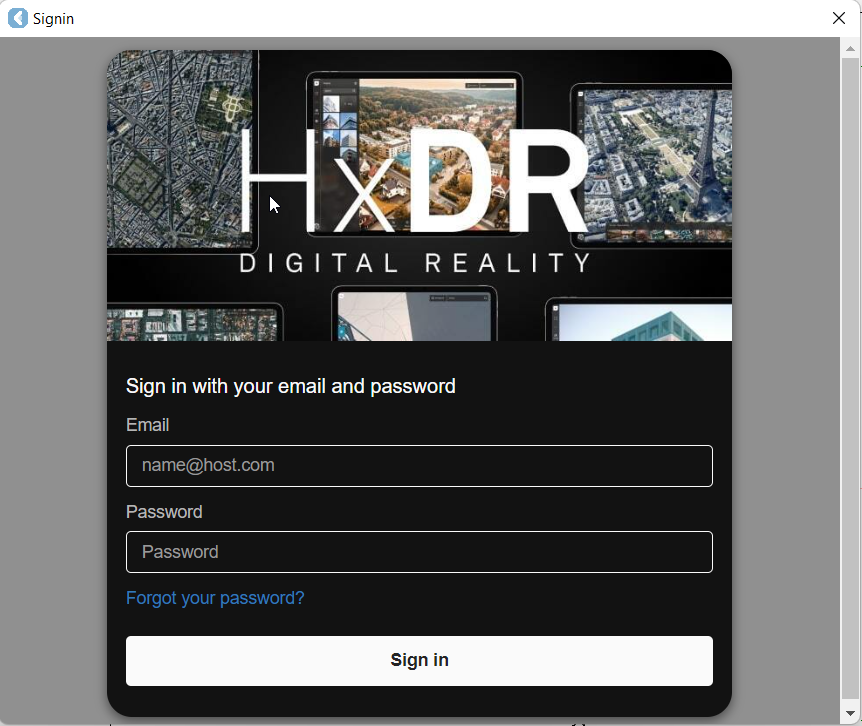

3. Sign in with your HxDR email and password.

Upon entering GeoCloud credentials, users will be shown only projects and assets that their account and project roles entitle them to. To modify the projects and asset a user has access to, please use GeoCloud via a web browser to modify their access rights.

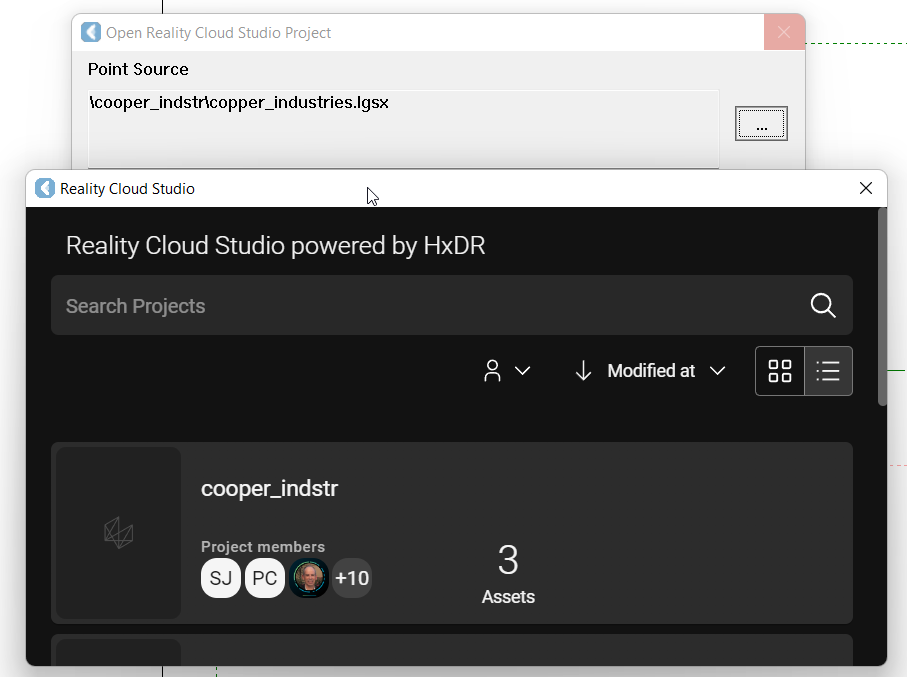

4. Browse until the desired asset is checked:

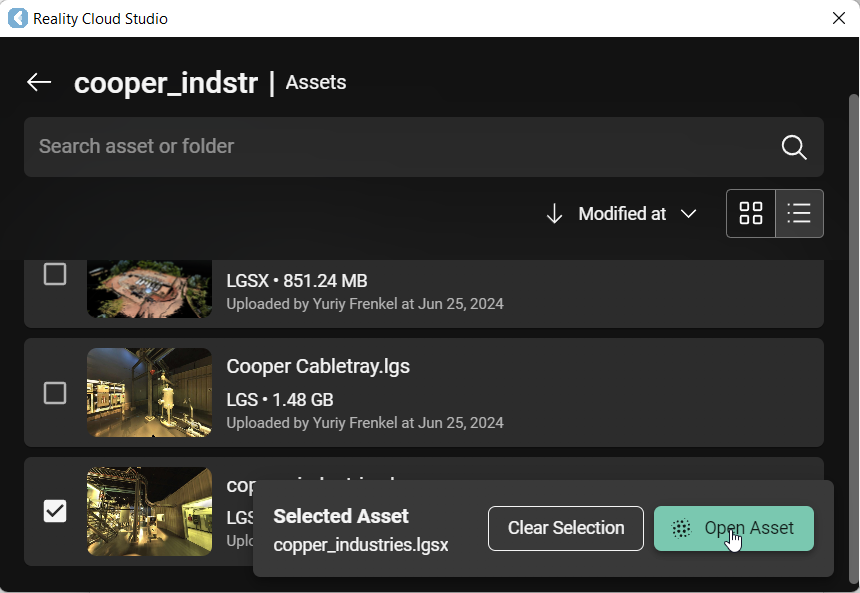

5. Click on Open Asset to start streaming the point cloud into the workspace:

Conduct Analysis on GeoCloud Asset

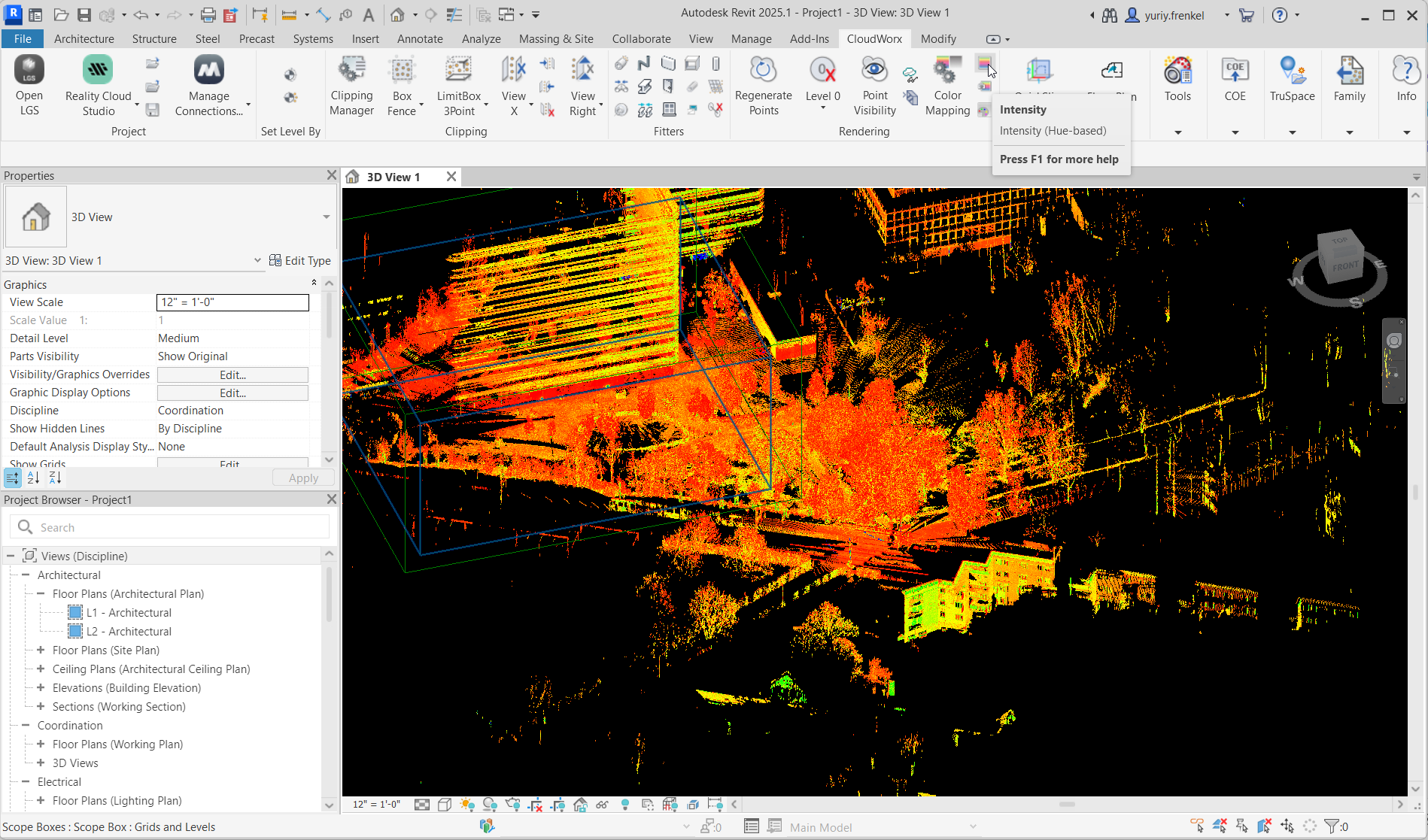

After the point cloud is completely rendered, you may start working with any of the available CloudWorx Toolsets.

Please refer to the https://rcdocs.leica-geosystems.com/en/technical-specifications/latest/cloudworx-technical-specifications for a complete list of tools in each plugin.

Close GeoCloud Project File

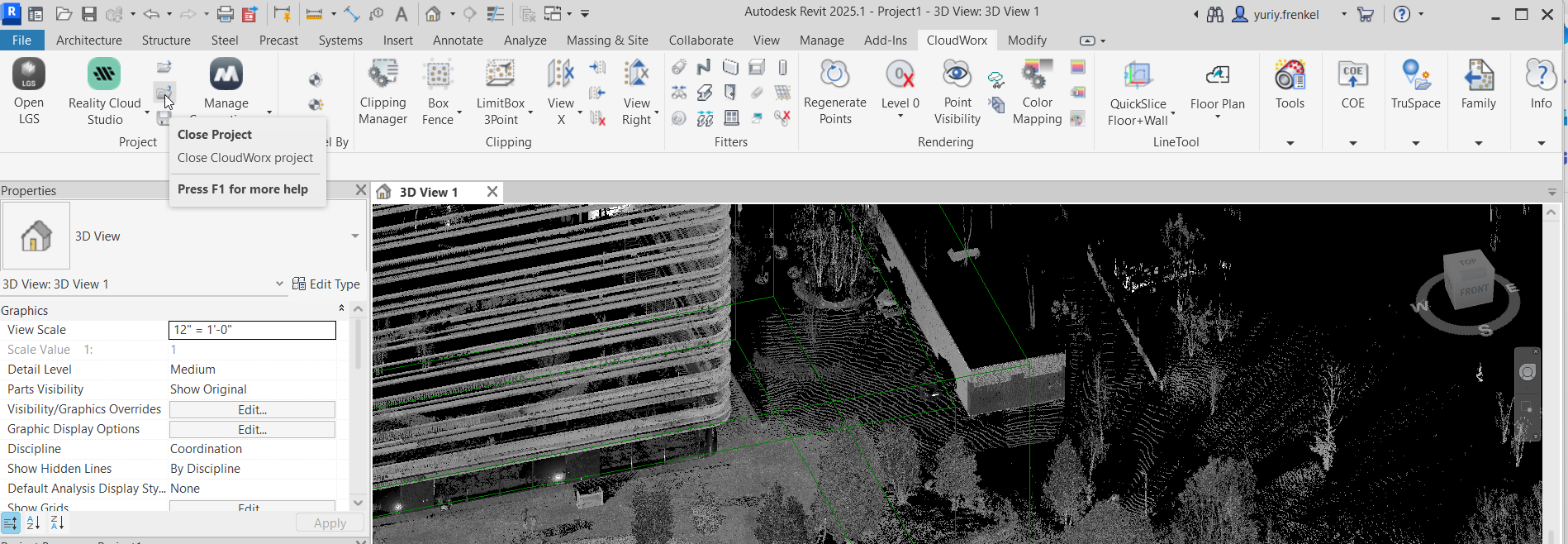

Click on the Close Project icon as depicted below to close an active project in your current workspace:

Logout from GeoCloud

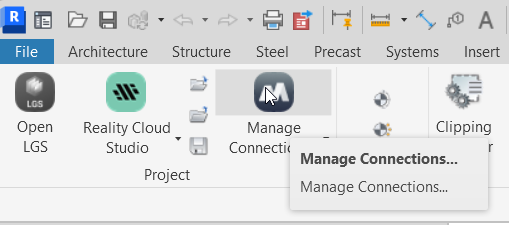

A user may logout from an active GeoCloud connection by selecting the ‘Manage Connections’ option available in the CloudWorx ribbon and clicking on ‘Logout' as depicted below:

After logging out the connection to GeoCloud will be terminated. A user may access GeoCloud assets by logging in to GeoCloud again with their GeoCloud credentials.

Please refer to https://rcdocs.leica-geosystems.com/cloudworx/latest/help-cloudworx for additional feature-based support and information.
