Adjust End Points

AUTOCAD PRO REVIT BRICSCAD PRO ULTIMATE

Fitters | Adjust End Points

Command Line

  • AutoCAD / BricsCAD: CWFITADJUST

This tool allows users to adjust end points of piping or steel structural elements within a drawing to improve the results of auto extraction.


Using the Tool

To adjust the extents of an object:

  1. Either click Adjust End Points in the Fitters panel or type a command line prompt specific to the preferred CAD system and press ENTER.

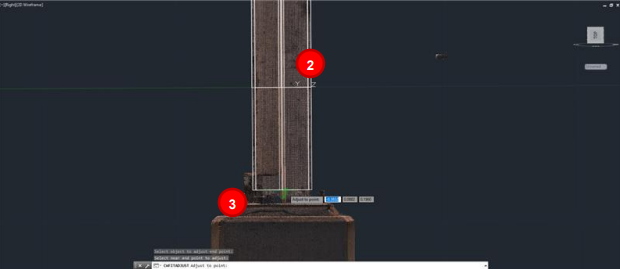

  2. Select an object to adjust the endpoint.

  3. Click near the edge of the object that needs to be adjusted and move the mouse until the element reaches the desired extent. Then click again to place it.
