3Point Arc

AUTOCAD PRO REVIT BRICSCAD PRO ULTIMATE

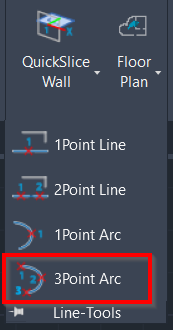

Line-Tools | 3Point Arc

Command Line

  • AutoCAD / BricsCAD: CWBARC

This tool draws an auto-fit arc with 3 points.

Each point creates an arc segment that will region grow to find the best arc for the points. The segment will connect to the previous one as it is created.


Note: Before using the tool, it's necessary to create the quick slice (see the QuickSlice page).
